RLY Oil Combustion Hot Air Furnace

Introduction: The fuel is burnt at firebox and the high temperature is produced. The quantity of heat will conduct to air to be heated through heat exchange device.Through heat exchange, the temperature of air is dropped to less than…

Inquire: 0086-510-8668-7091

Inquire

Contact

Details Picture Collection

WORKING PRINCIPLE
The fuel is burnt at the burner to produce high temperature gas. The heat will conduct to the air by the heat exchange device. The temperature of the high temperature gas will dropped to less than 250°C and then discharged. The clean air is pushed to hot air furnace by the blower. The hot air will be sent from the vent after absorbed heat up to the rated value. When the temperature of hot air reaches the rated upper limit, the burner will stop burning or turn down to a small fire automatically. When the temperature of hot air drops to the rated low limit, the burner start to burn or turn up to a big -fire automatically.

APPLICATION
This furnace is widely used for curing, heat-setting, and drying in various industries such as pharmaceutical, chemical, food, textile, food processing, wood processing, automobile, and etc.

TECHNICAL PARAMETER

Model	Burner	oil combustion (kg/h)	Capacity (104 kcal/h)	Overall dimensions L×W×H (mm)	Hot air inlet L×W (mm)	Total weight (kg)
RLY1	RIELLO.G3/DL3FS	1.3-1.6	1	1200×1200×1600	Φ200	460
RLY4	RIELLO.G10/DL10FS	5-6.5	4	1700×1300×1600	Φ250	850
RLY10	RIELLO.G20/DL23FS	13-16	10	2300×1568×1870	Φ300	2200
RLY20	RIELLO 1G/DL34FS	26-32	20	2800×1568×1870	Φ400	2670
RLY30	RL50/DL55FT	39-48	30	3400×1568×1870	Φ450	3060
RLY40	RL70/DL75FT	52-64	40	4440×1768×2070	Φ550	5600
RLY60	RL100/DL100FT	78-96	60	5140×1868×2070	Φ600	8460
RLY100	PRESS 4G/DL 120FT	130-140	100	6440×2480×2300	550×600	12800
RLY160	P300/DL250FT	200-270	160	7470×2920×3480	750×900	15780
RLY200	P300/DL300FT	260-300	200	8175×2920×3480	750×900	18500
RLY360	G1510	480-620	360	9300×2920×3480		2100

Picture Collection

Application

Videos

No data available at the moment ..

Animations

Previous: JRF Coal Combustion Hot Air Furnace

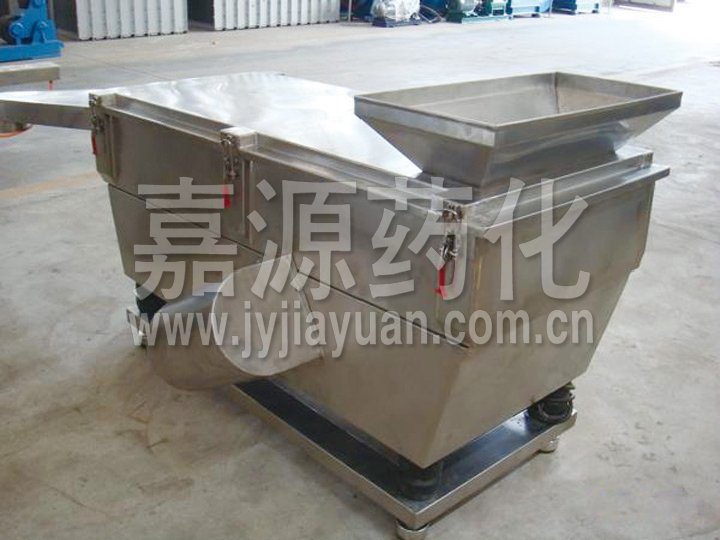

Next: SRQ Heat Exchanger
